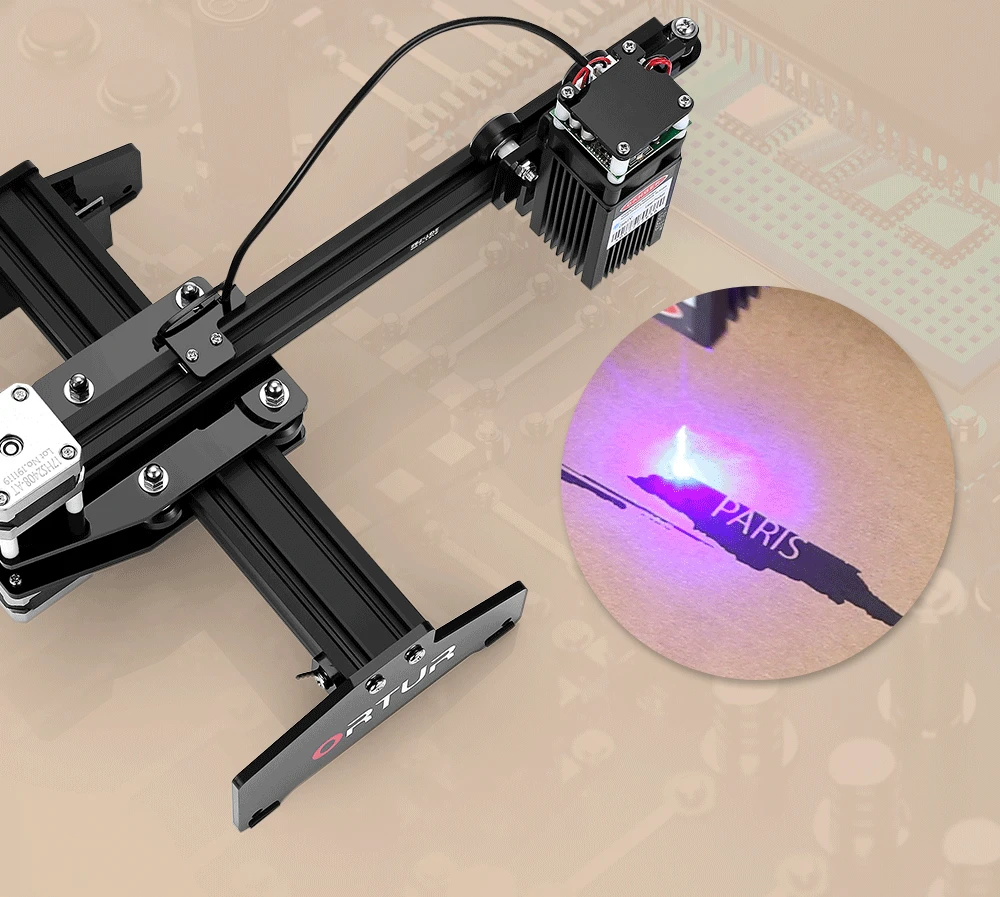

2020 Ortur Laser MASTER 20W Engraving Machine 32-bit DIY Laser Engraver Metal Cutting Printer For Windows with Safety Protection


19 in stock


Tax free to EU countries, please choose “Seller’s Shipping Method” when you place the order.
Q: Can this 7W laser machine work on the food, such as biscuit?
A: Yes, acutally all the 7W, 15W, 20W can print on biscuit, bread, even the bone. For 15W and 20W, you need to adjust the value “S”, which means luminous power. You can adjust the power and rate according to different materials.



Main Features
– 32-bit Motherboard with STM32 chip, more powerful, faster, higher precision. Easy to adjust the speed (0-3,000mm/min) and power (S0-S1,000) for both of engraving and cutting.
– Active position protection, there is a G-sensor on the motherboard for active position protection. If the machine detects unauthorized movement, the laser beam will stop.
– Laser beam safety guard, if your computer system halted, led to that the laser engraver stop moving, the laser beam will stop.
– Exposure limitation, after the laser beam is turned on, but there is no movement for a long time, it will automatically stop. Weak Light Mode: the laser beam automatically stops after 100 seconds. None Weak Light Mode: based on the power level, the laser beam automatically stops within 10 to 60 seconds.
– LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the laser engraver via LaserGRBL for engraving and cutting.
– This laser engraver supports PWM mode.
– Pre-assembled parts, just need 5-10 minutes to install the machine.

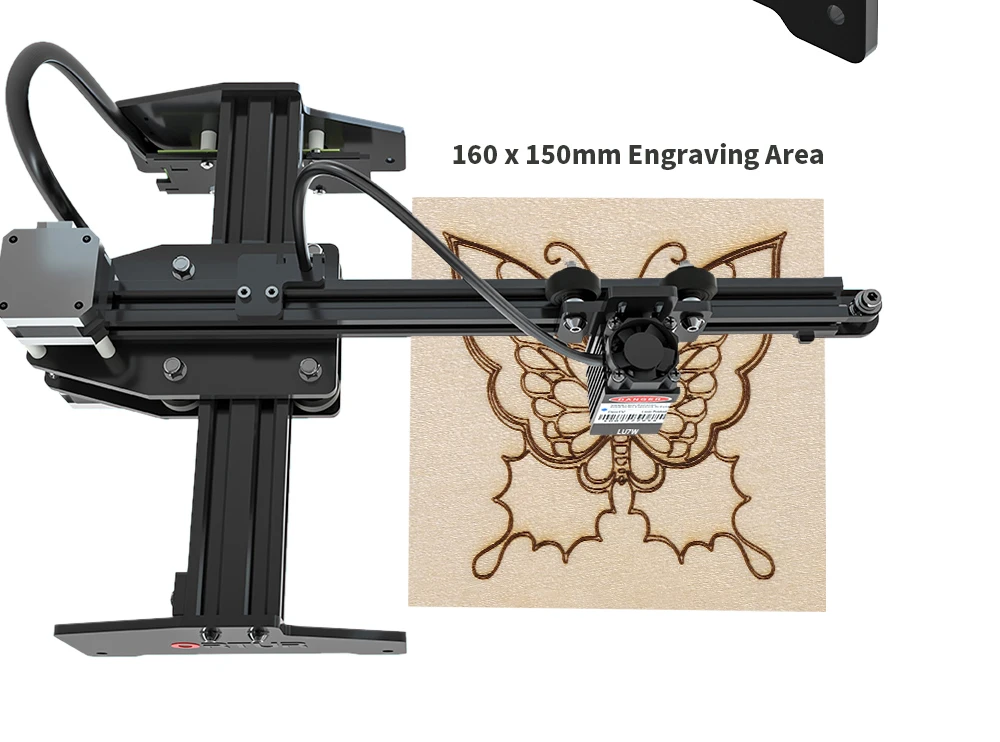

– 160 x 150 mm engraving area.
– Aluminum profile + acrylic materials machine body.

Image format: NC, DXF, BMP, JPG, PNG
Operating system: Win XP, Win 7, Win 8, Win 10
Image size: 2000 x 2000 pixels / 0.075mm dot pitch
Power adapter output voltage: 12V

1.Please wear protective glasses when operating the machine.
2.Please do not touch the laser emitter with your hand, or it may burn your hand.
3.Please avoid strong impact on the machine.
4.Children under 14 are not allowed to use this product and children over 14 need adult supervision.
5.The light engraving machine cannot be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
6.This product is not recommended for industrial cutting due to its high engraving speed.


Brand: Ortur
Type: Laser Engraving Machine
Material: Aluminum + Acrylic
Laser Wavelength(nm): 440nw-450nw
Laser Power: Electrical Power:7W, Luminous Power: 1200-1600 mw
Laser Reaching Range: 160 * 150mm
Power By: Power Adapter 12V 3A
Product weight: 1.5000 kg
Package weight: 2.3500 kg
Product size (L x W x H): 38.70 x 27.20 x 13.30 cm / 15.24 x 10.71 x 5.24 inches
Package size (L x W x H): 44.00 x 26.00 x 12.00 cm / 17.32 x 10.24 x 4.72 inches
Package Contents: 1 x Acrylic Plate for Testing, 4 x Wooden Plates for Testing, 1 x Wrench, 6 x Cable Ties, 1 x Power Adapter, 4 x Angle Fasteners, 1 x Whiteboard Marker, 1 x Brush, 4 x M5 Nuts & Washers, 2 x M3x16 Screws & 5MM Plastic Columns


Q: About Shipping

A: We will send the items within 7 days(working days) after your payment is received, and the tracking number and tracking website will also be sent to you through Chats.

Q: About customs tax

A: Every country has her own duty policy, we cannot make promise about that. But if you have any requirements, pls contact us before you place the order.

Q: About Feedback

A: Five-star feedback is warmly welcomed. We request that you contact us immediately BEFORE you leave a Neutral or Negative feedback, so that we can help you to solve the problems.
